Events

BPMN Model

We’ll be using the following files from spiff-example-cli.

• transaction workflow
• signal_event workflow
• events workflow
• call activity workflow
• product_prices DMN table
• shipping_costs DMN table

A general overview of events in BPMN can be found in the Overview section of the documentation.

SpiffWorkflow supports the following Event Definitions:

• Cancel Events
• Signal Events
• Terminate Events
• Error Events
• Escalation Events
• Timer Events
• Message Events

We’ll include examples of all of these types in this section.

Transactions

We also need to introduce the concept of a Transaction, bceause certain events can only be used in that context. A Transaction is essentially a subprocess, but it must fully complete before it affects its outer workflow.

We’ll make our customer’s ordering process through the point they review their order into a Transaction. If they do not complete their order, then product selections and customizations will be discarded; if they place the order, the workflow will proceed as before.

We’ll also introduce our first event type, the Cancel Event. Cancel Events can only be used in Transactions.

Cancel Events

Workflow with a transaction and Cancel Event

We changed our ‘Review Order’ Task to be a User Task and have added a form, so that we can give the customer the option of cancelling the order. If the customer answers ‘Y’, then the workflow ends normally and we proceed to collecting payment information.

However, if the user elects to cancel their order, we use a ‘Cancel End Event’ instead, which generates a Cancel Event. We can then attach a ‘Cancel Boundary Event’ to the Transaction, and execute that path if the event occurs. Instead of asking the customer for their payment info, we’ll direct them to a form and ask them why they cancelled their order.

If the order is placed, the workflow will contain the order data; if it is cancelled, it will contain the reason for cancellation instead.

To run this workflow

./run.py -p order_product \
     -d bpmn/product_prices.dmn bpmn/shipping_costs.dmn \
     -b bpmn/transaction.bpmn bpmn/call_activity.bpmn

Signal Events

Workflow with Signal Events

Suppose we also want to give our customer the ability to cancel their order at any time up until they are charged. We need to throw an event after the charge is placed and catch this event before the user completes the ‘Cancel Order’ task. Once the charge is placed, the task that provides the option to cancel will itself be cancelled when the charge event is received.

We’ll also need to detect the case that the customer cancels their order and cancel the charge task if it occurs; we’ll use a separate signal for that.

Multiple tasks can catch the same signal event. Suppose we add a Manager role to our workflow, and allow the Employee to refer unsuccessful charges to the Manager for resolution. The Manager’s task will also need to catch the ‘Order Cancelled’ signal event.

Signals are referred to by name.

Signal Event configuration

Terminate Events

We also added a Terminate Event to the Manager Workflow. A regular End Event simply marks the end of a path. A Terminate Event will indicate that the entire workflow is complete and any remaining tasks should be cancelled. Our customer cannot cancel an order that has already been cancelled, and we won’t ask them for feedback about it (we know it wasn’t completed), so we do not want to execute either of those tasks.

We’ll now modify our workflow to add an example of each of the other types of events that SpiffWorkflow Supports.

To run this workflow

./run.py -p order_product \
     -d bpmn/product_prices.dmn bpmn/shipping_costs.dmn \
     -b bpmn/signal_event.bpmn bpmn/call_activity.bpmn

Error Events

Let’s turn to our order fulfillment subprocess. Either of these steps could potentially fail, and we may want to handle each case differently.

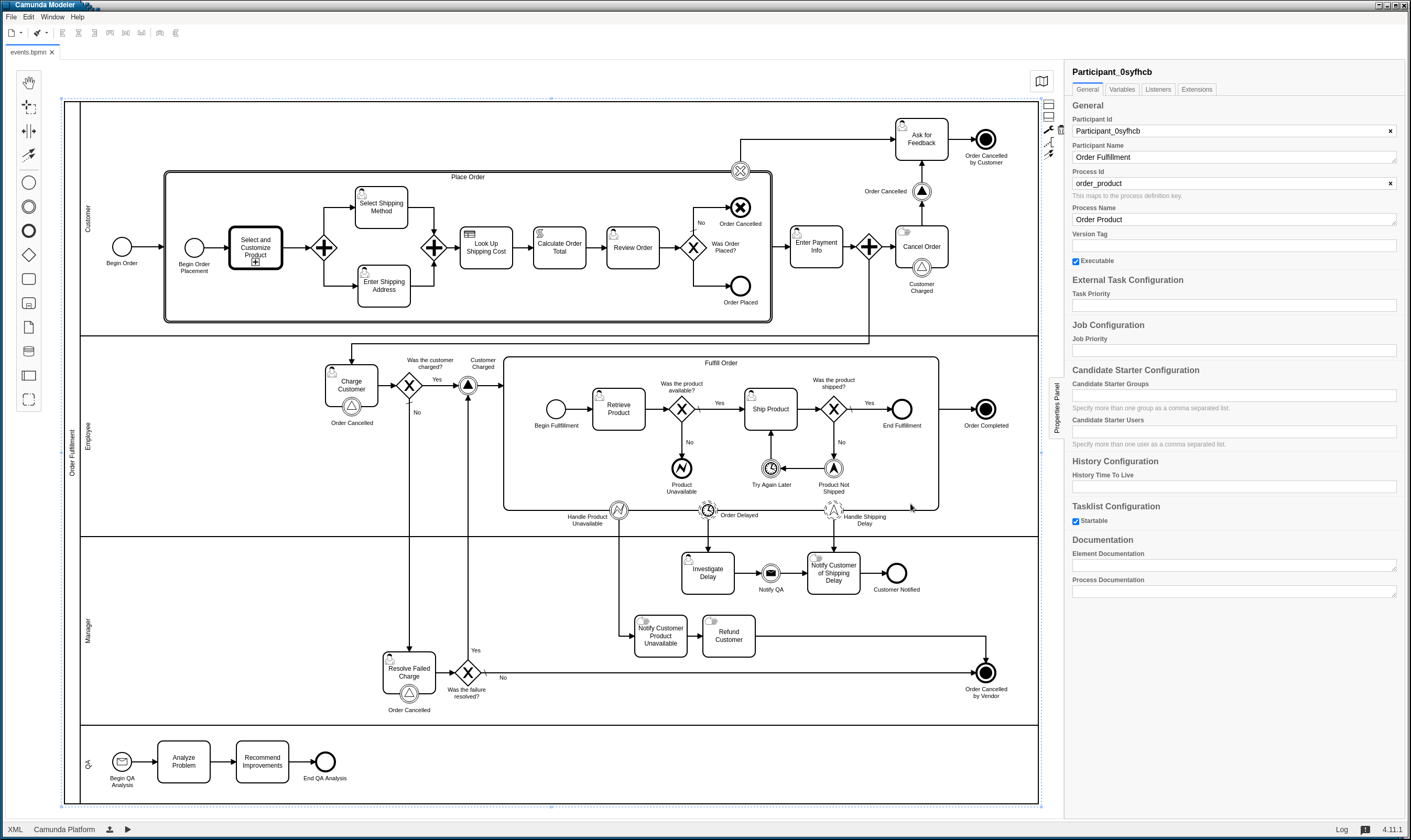

Workflow with multiple event types

One potential failure is that our product is unavailable. This actually might be a temporary problem, but we’ll assume that it is a show stopper for the sake of this tutorial.

We ask the Employee to verify that they were able to retrieve the product; if they were unable to do so, then we generate an Error End Event, which we will handle with an Interrupting Error Boundary Event (Error events are always Interrupting).

If the product is unavailable, our Manager will notify the customer, issue a refund, and cancel the order.

Escalation Events

Escalation events are a lot like Error Events and as far as I can tell, which one to use comes down to preference, with the caveat that if you want to use an Intermediate Event, you’ll have to use Escalation, because BPMN does not allow Intermediate Error Events, and that Error Events cannot be Non-Interrupting.

In our example, we’ll assume that if we failed to ship the product, we can try again later, so we will not end the Subprocess (Escalation events can be either Interrupting or Non-Interrupting).

However, we still want to notify our customer of a delay, so we use a Non-Interrupting Escalation Boundary Event.

Both Error and Escalation Events can be optionally associated with a code. Here is Throw Event for our product_not_shipped Escalation.

Throw Escalation Event configuration

Error Event configuration is similar.

If no code is provided in a Catch event, any event of the corresponding type will catch the event.

Timer Events

In the previous section, we mentioned that that we would try again later if we were unable to ship the order. We can use a Duration Timer Event to force our workflow to wait a certain amount of time before continuing. We can use this as a regular Intermediate Event (in ‘Try Again Later’) or a Boundary Event. Timer Boundary Events can be Interrupting, but in this case, we simply want to notify the customer of the delay while continuing to process their order, so we use a Non-Interrupting Event.

Duration Timer Event configuration

We express the duration as a Python timedelta. We show the configuration for the Boundary Event.

It is also possible to use a static datetime to trigger an event. It will need to be parseable as a date by Python.

Timer events can only be caught, that is waited on. The timer begins implicitly when we reach the event.

Message Events

In BPMN, Messages are used to communicate across processes. Technically, Messages are not intended to be used inside a single process, but Spiff does support this use.

Messages are similar to signals, in that they are referenced by name, but they have the additional property that they may contain a payload.

We’ve added a QA process to our model, which will be initiated whenever an order takes to long to fulfill. We’ll send the reason for the delay in the message.

Note

This example depends on some Camunda-specific features in our implementation; there is an alternate messaging implementation in the Spiff extensions package, described in Spiff Extensions.

Throw Message Event configuration

The Throw Message Event Implementation should be ‘Expression’ and the Expression should be a Python statement that can be evaluated. In this example, we’ll just send the contents of the reason_delayed variable, which contains the response from the ‘Investigate Delay’ Task.

We can provide a name for the result variable, but I have not done that here, as it does not make sense to me for the generator of the event to tell the handler what to call the value. If you do specify a result variable, the message payload (the expression evaluated in the context of the Throwing task) will be added to the handling task’s data in a variable of that name; if you leave it blank, SpiffWorkflow will create a variable of the form <Handling Task Name>_Response.

Running The Model

./run.py -p order_product \
     -d bpmn/product_prices.dmn bpmn/shipping_costs.dmn \
     -b bpmn/events.bpmn bpmn/call_activity.bpmn
