Events

BPMN Model

We’ll be using the following files from spiff-example-cli.

A general overview of events in BPMN can be found in the Overview section of the documentation.

SpiffWorkflow supports the following Event Definitions:

We’ll include examples of all of these types in this section.

Note

SpiffWorflow can also support Multiple Event definitions, but our modeler does not allow you to create them, so we will not delve into them further here.

Transactions

We also need to introduce the concept of a Transaction because certain events can only be used in that context. A Transaction is essentially a Subprocess, but it must fully complete before it affects its outer workflow.

We’ll make our customer’s ordering process through the point they review their order into a Transaction. If they do not complete their order, then product selections and customizations will be discarded; if they place the order, the workflow will proceed as before.

We’ll also introduce our first event type, the Cancel Event. Cancel Events can only be used in Transactions.

Cancel Events

../_images/transaction.png

Workflow with a Transaction and Cancel Event

We changed our ‘Review Order’ Task to be a User Task and have added a form, so that we can give the customer the option of cancelling the order. If the customer answers ‘Y’, then the workflow ends normally and we proceed to collecting payment information.

However, if the user elects to cancel their order, we use a Cancel End Event instead, which generates a Cancel Event. We can then attach a Cancel Boundary Event to the Transaction, and execute that path if the event occurs. Instead of asking the customer for their payment info, we’ll direct them to a form and ask them why they cancelled their order.

If the order is placed, the workflow will contain the order data; if it is cancelled, it will contain the reason for cancellation instead.

To run this workflow

./spiff-bpmn-runner.py -p order_product \
     -d bpmn/tutorial/product_prices.dmn bpmn/tutorial/shipping_costs.dmn \
     -b bpmn/tutorial/transaction.bpmn bpmn/tutorial/call_activity.bpmn

Signal Events

../_images/signal_event.png

Workflow with Signal Events

Suppose we also want to give our customer the ability to cancel their order at any time up until they are charged. We need to throw an event after the charge is placed and catch this event before the user completes the ‘Cancel Order’ task. Once the charge is placed, the task that provides the option to cancel will itself be cancelled when the charge event is received.

We’ll also need to detect the case that the customer cancels their order and cancel the charge task if it occurs; we’ll use a separate Signal for that.

Multiple tasks can catch the same Signal Event. Suppose we add a Manager role to our Process, and allow the Employee to refer unsuccessful charges to the Manager for resolution. The Manager’s task will also need to catch the ‘Order Cancelled’ Signal Event.

Signals are referred to by name.

../_images/throw_signal_event.png

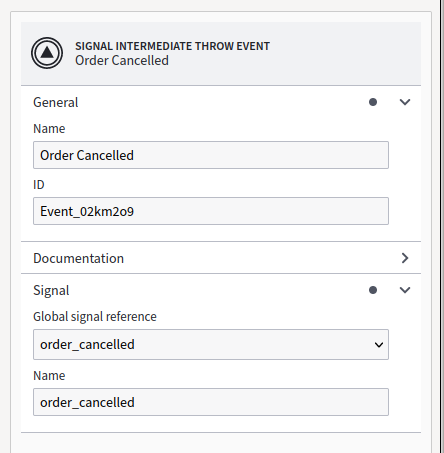

Signal Event configuration

Terminate Events

We also added a Terminate Event to the Manager Workflow. A regular End Event simply marks the end of a path. A Terminate Event will indicate that the entire Process is complete and any remaining tasks should be cancelled. Our customer cannot cancel an order that has already been cancelled, and we won’t ask them for feedback about it (we know that is was because we were unable to charge them for it), so we do not want to execute either of those tasks.

To run this workflow

./spiff-bpmn-runner.py -p order_product \
     -d bpmn/tutorial/product_prices.dmn bpmn/tutorial/shipping_costs.dmn \
     -b bpmn/tutorial/signal_event.bpmn bpmn/tutorial/call_activity.bpmn

We’ll now modify our workflow to add an example of each of the other types of events that SpiffWorkflow supports.

Error Events

Let’s turn to our order fulfillment subprocess. Either of these steps could potentially fail, and we may want to handle each case differently.

../_images/events.png

Workflow with multiple event types

One potential failure is that our product is unavailable. This actually might be a temporary problem, but we’ll assume that it is a show stopper for the sake of this tutorial.

We ask the Employee to verify that they were able to retrieve the product; if they were unable to do so, then we generate an Error End Event, which we will handle with an Interrupting Error Boundary Event (Error events are always interrupting).

If the product is unavailable, our Manager will notify the customer, issue a refund, and cancel the order.

Escalation Events

Escalation events are a lot like Error Events and as far as I can tell, which one to use comes down to preference, with the caveat that if you want to use an Intermediate Event, you’ll have to use Escalation, because BPMN does not allow Intermediate Error Events, and that Error Events cannot be Non-Interrupting.

In our example, we’ll assume that if we failed to ship the product, we can try again later, so, we will not end the Subprocess (Escalation events can be either Interrupting or Non-Interrupting).

However, we still want to notify our customer of a delay, so we use a Non-Interrupting Escalation Boundary Event.

Both Error and Escalation Events can be optionally associated with a code. Here is Throw Event for our product_not_shipped Escalation.

../_images/throw_escalation_event.png

Throw Escalation Event configuration

Error Event configuration is similar.

If no code is provided in a Catch event, it can be caught by any Escalation with the same name.

Timer Events

In the previous section, we mentioned that that we would try again later if we were unable to ship the order. We can use a Duration Timer Event to force our workflow to wait a certain amount of time before continuing. We can use this as a regular Intermediate Event (in ‘Try Again Later’) or a Boundary Event. Timer Boundary Events can be Interrupting, but in this case, we simply want to notify the customer of the delay while continuing to process their order, so we use a Non-Interrupting Event.

../_images/timer_event.png

Duration Timer Event configuration

We express the duration as an ISO8601 duration.

Note

We enclosed the string in quotes, because it is possible to use a variable to determine how long the timer should wait.

It is also possible to use a static date and time to trigger an event. It will also need to be specified in ISO8601 format.

Timer events can only be caught, that is waited on. The timer begins implicitly when we reach the event.

Message Events

In BPMN, Messages are used to communicate across processes. Technically, Messages are not intended to be used inside a single Process, but Spiff does support this use.

Messages are similar to Signals, in that they are referenced by name, but they have the additional property that they may contain a payload. The payload is a bit of python code that will be evaluated against the task data and sent along with the Message. In the corresponding Message Catch Event or Receive Task, we define a variable name where we’ll store the result.

We’ve added a QA process to our model, which will be initiated whenever an order takes too long to fulfill. We’ll send the reason for the delay in the Message.

Spiff Messages can also optionally use Correlation Keys. The Correlation Key is an expression or set of expressions that are evaluated against a Message payload to create an additional identifier for associating messages with Processes.

In our example, it is possible that multiple QA processes could be started (the timer event will fire every two minutes until the order fulfillment process is complete, or more realistically, they could be investigating many entirely different orders, even if our simple runner does not handle that case). In this case, the Message name is insufficient, as there will be multiple Processes that can accept Messages based on the name.

../_images/correlation.png

Defining a correlation key

We use the timestamp of the Message creation as a unique key that can be used to distinguish between multiple QA Processes.

../_images/throw_message_event1.png

Configuring a message throw event

When we receive the event, we assign the payload to order_info.

../_images/catch_message_event.png

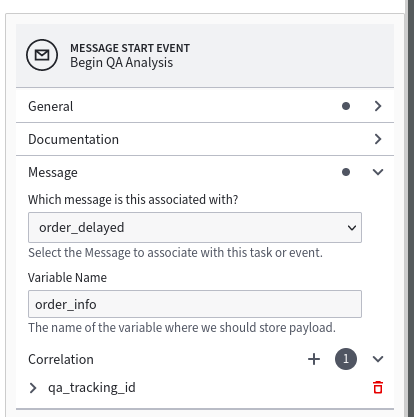

Configuring a message catch event

The correlation is visible on both the Throw and Catch Events, but it is associated with the message rather than the tasks themselves; if you update the expression on either event, the changes will appear in both places.

Running The Model

./spiff-bpmn-runner.py -c order_collaboration \
     -d bpmn/tutorial/product_prices.dmn bpmn/tutorial/shipping_costs.dmn \
     -b bpmn/tutorial/events.bpmn bpmn/tutorial/call_activity.bpmn

Note

We’re specifying a collaboration rather than a process so that SpiffWorkflow knows that there is more than one top-level process.
